AiM Brake Pressure Sensor M10 0-100 Bar Motorcycle

Regular price £210.00 GBP + VAT
Patch Lead Type
Patch Lead

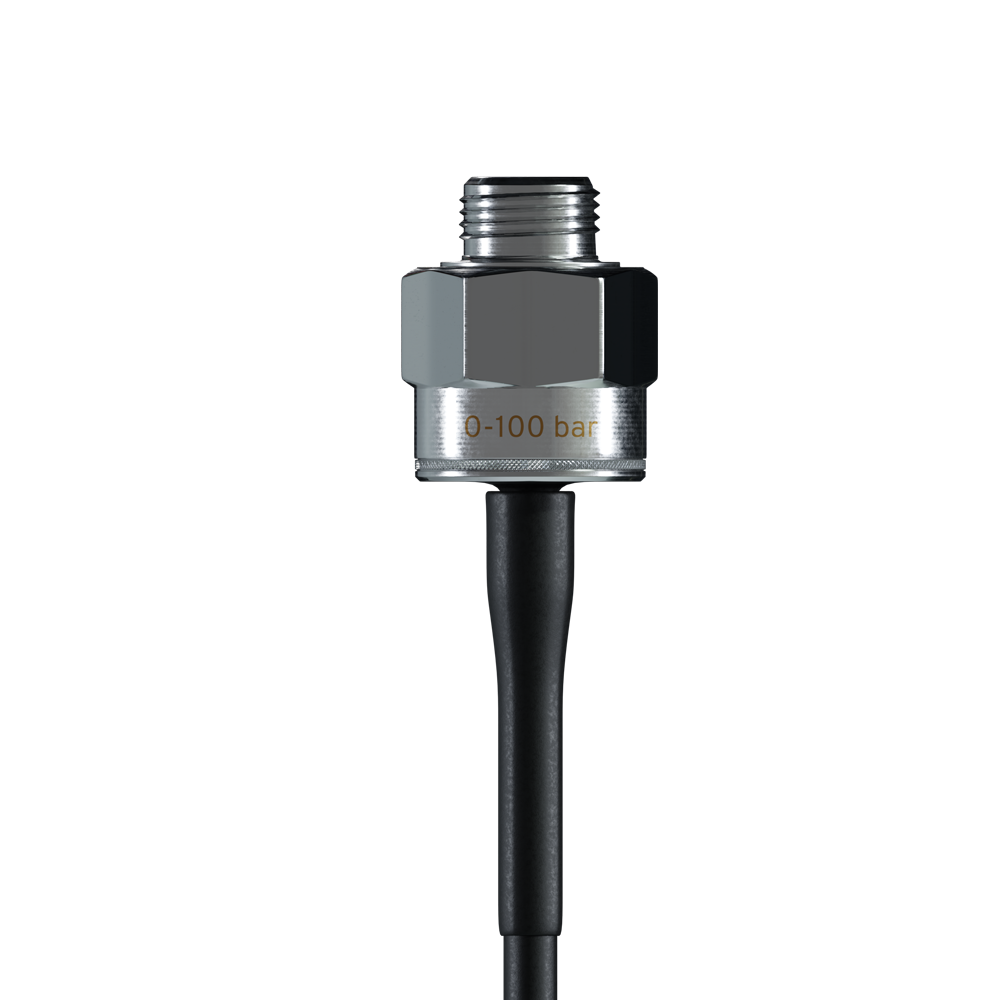

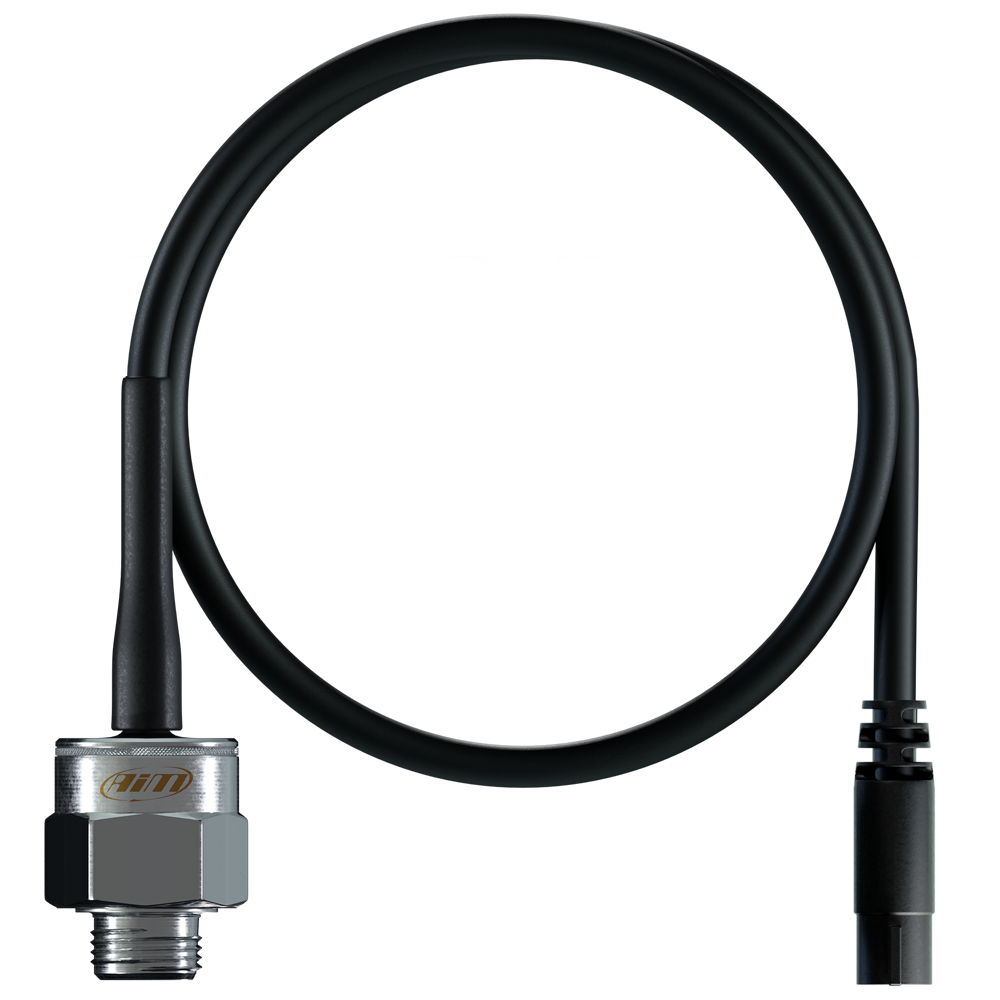

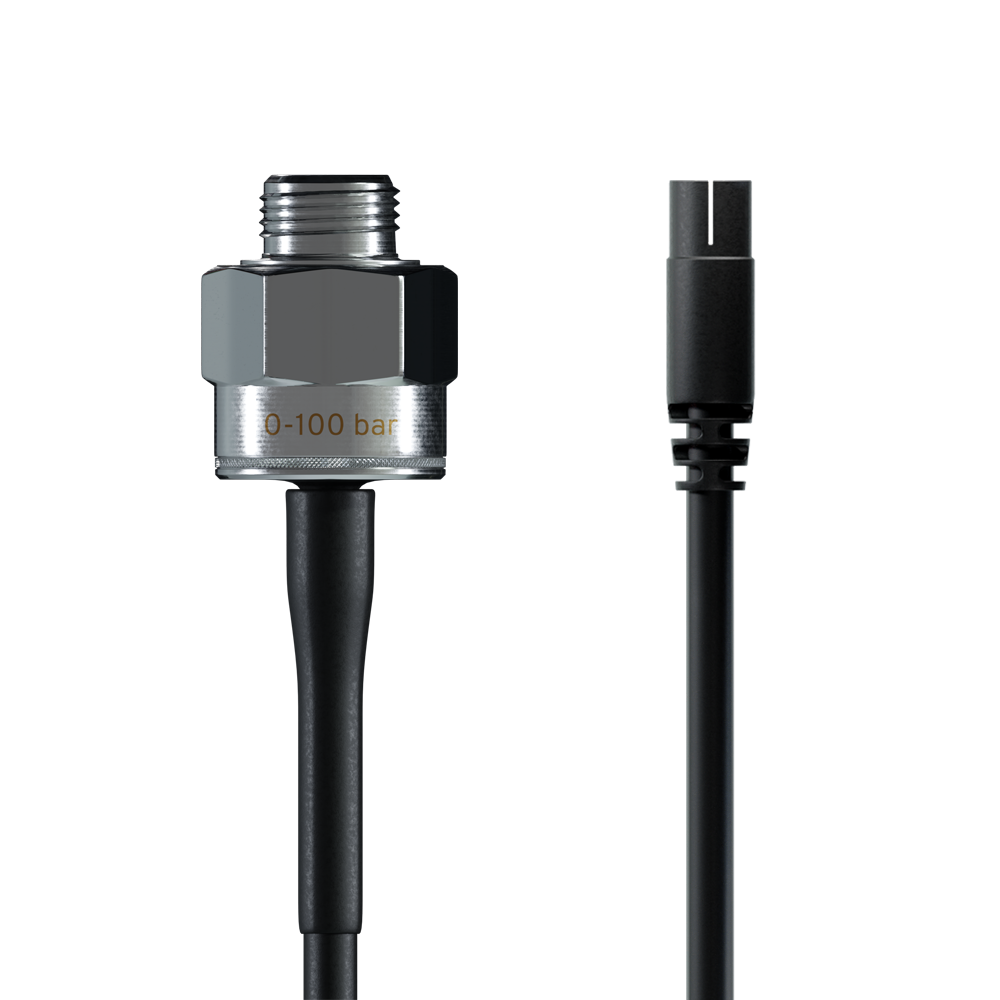

AiM Brake Pressure Sensor M10 0-100 Bar

The AiM M10 0-100 Bar pressure sensor is suitable for oil and fuel pressure readings and can read pressures up to 100 bars. This sensor will monitor brake pressure levels for optimum performance accurately.

Key Features :

M10 -  0-100 Bar 4 pins 719 male binder

AiM Brake Pressure Sensor M10 0-100 Bar

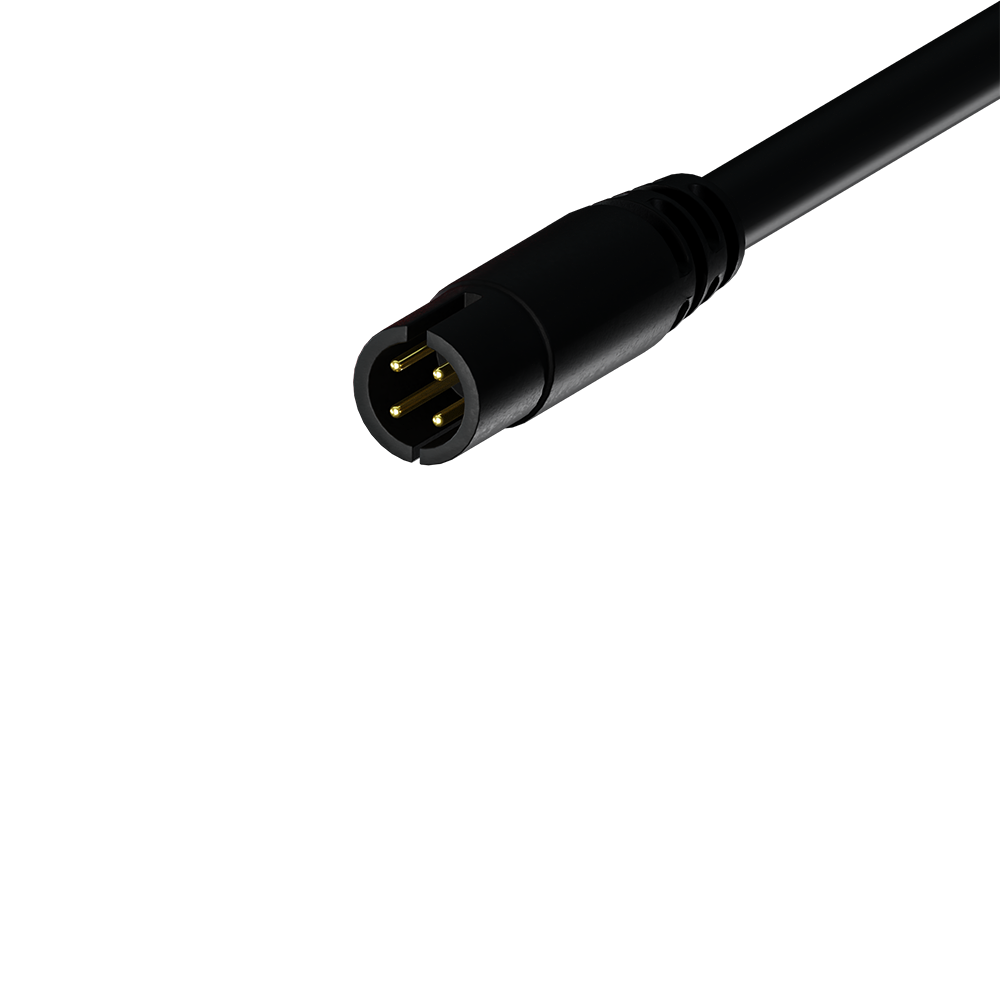

The AiM M10 - 0-100 Bar brake pressure sensors are fitted with male four pins black 719 binder plug connections to suit all AIM loggers and dash display/loggers.

Whether your bike is equipped with single, dual, fixed or adjustable master cylinders, adding brake pressure sensors allow you to monitor brake performance, make real changes and identify issues quickly and precisely.

The sensors can be easily installed in a -3 brake line using a three-way T-piece. It can also use them for measuring other pressures too high for the 0-10 Bar sensor. Available with an M10x1 or Dash 3 3/8 thread.

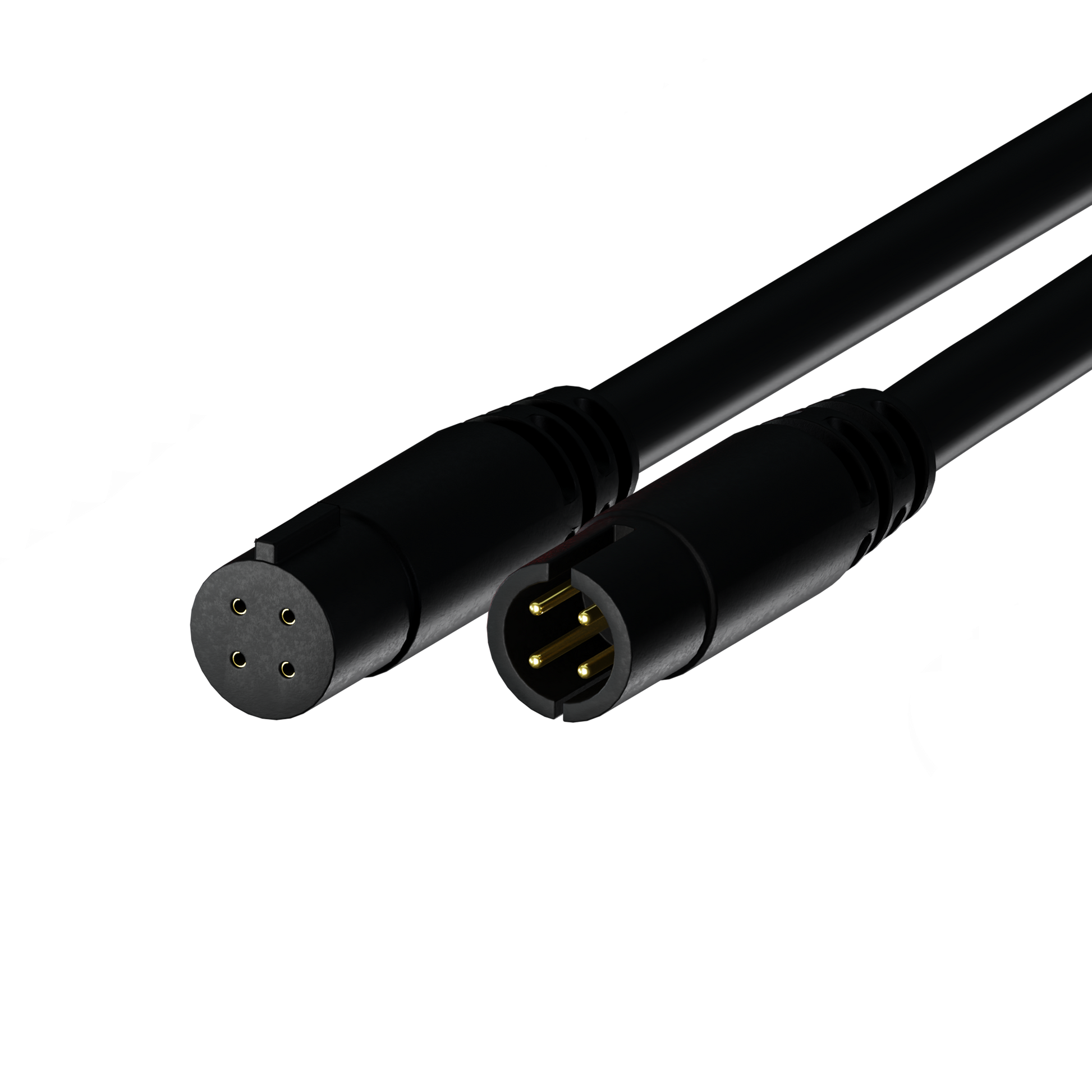

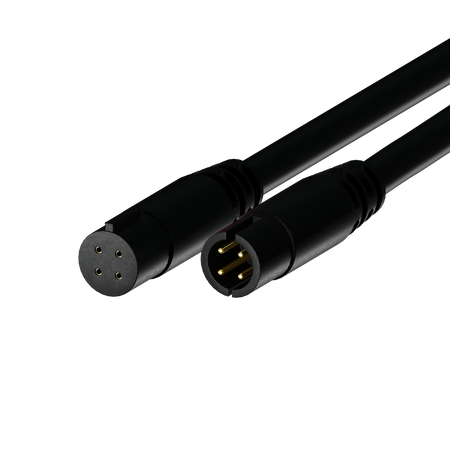

MXS / MXP / MXG / MXL (Strada and Pista) / MXL2 / EVO5 / MXm etc harnesses are fitted with 719 connections. To extend the length between your dash display/logger and the analogue sensor, please use the 719 - 719 patch lead, which is available in various lengths from 0.5 - 3 metres. For most installations, you will need one of these leads.

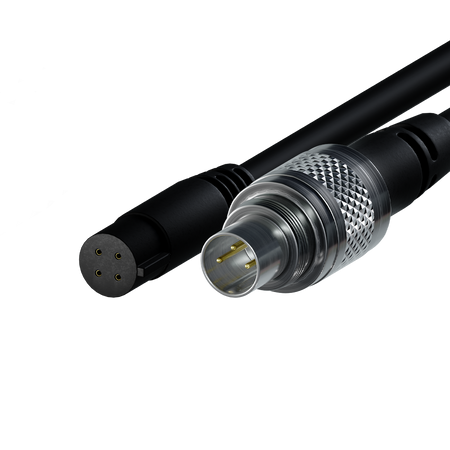

EVO4 / EVO4S logger / Channel Expansion are fitted with 712 connections and require a 712 - 719 patch lead to connect these sensors.
