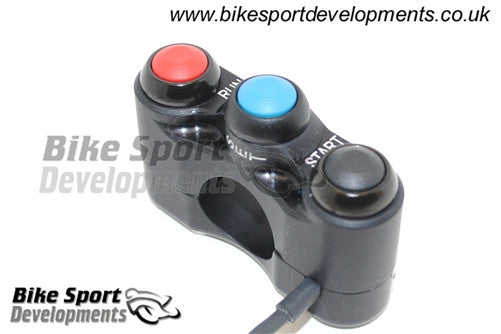

3 way Stop/Run switch assembly for Ducati Panigale 1299, 1199R (2015 on), Superleggera race or road bikes.
To be used with switch assembly BD-SW-5B-05
To be used with switch assembly BD-SW-5B-05
This switch is designed only for use with the on bikes where the user already has the left side 5 way switch set BD-SW-5B-05.
The aluminium assembly has been designed ultra-slim and encompasses these waterproof switches:
- RED latching (Push On , Push OFF) for stop and run
- Blue momentary to replicate the left side flasher function for Lap SET
- Black momentary for engine starter
No modification of the bike wiring is necessary, this kit plugs directly into the 4 way connector of the standard loom, and also the wiring of the left side 5 way switch
BD-SW-5B-05.
Rugged machined aluminium construction with fully waterproof switches provide greater crash protection as well as electrical integrity.
- Width - 20.5mm
- Width at centre - 13.5mm
- Cable length 380mm
- Coating - Black anodise
- Made in the UK
- Sealed switch assembly
- Pre-wired connector to suit the standard bike wiring
- retaining screws
