Kawasaki ZX-6R / 636 2009-18 Diamond Race Products Rearsets (Road or Race Shift)

Regular price $382.00 USD + VAT
Footpeg Colour

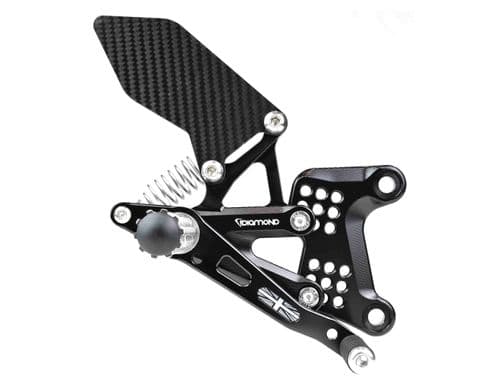

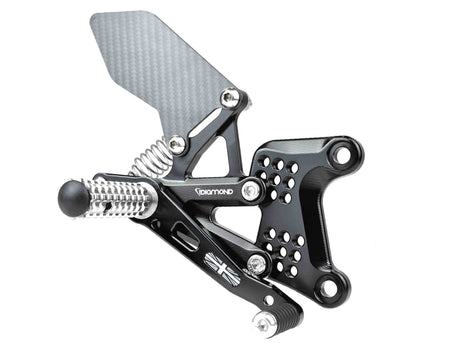

Kawasaki ZX-6R / 636 2009-18 Diamond Race Products Rearsets (Road or Race Shift)

Top specification rearset kits by Diamond Race Products, as trusted by top teams Worldwide for over a decade!

CNC machined from aerospace grade 7075 T6 billet aluminium, gear change & brake levers are fitted with EC52100 chrome steel grease packed bearings (Most levers include twin bearings for durability) for ultra smooth and reliable movement. Positions are multi-adjustable to suit rider preference - please see the chart below for available position range.

Diamond always carry a full stock of spares for our products (i.e. gear levers, brake levers, footpegs, toepegs, rod end bearings, shift rods, pivot bearings, etc.)


Specifications

- CNC machined from aerospace grade 7075-T6 billet aluminium.

- Huge range of adjustment to suit rider's preference – See chart below.

- Aluminium components hard anodised for high wear resistance.

- EC52100 Double* chrome-steel bearings in gear/brake levers for perfect precision.(single bearings in some lever applications)

- Aggressively machined footpegs for maximum grip in all conditions.

- This kit is designed to allow selection of both Road & Race shift patterns by relocating one bolt.

- Heel guards laser etched with the 'Diamond Race Products' logo.

- Each kit includes a bottle of 243 threadlock for use in assembly.

- Product weight: 1.2kg

Pos. Forward/Backward Up/Down
1 0mm Up – 5mm
2 0mm Up – 15mm
3 0mm Up – 25mm
4 Forward – 10mm Up – 15mm
5 Forward – 10mm Up – 25mm
6 Back – 10mm Up – 5mm
7 Back - 10mm Up – 15mm
8 Back – 10mm Up – 25mm

All above measurements taken from OEM ZX6R footrest position.

Please note – No bracketry for usage of the OEM brake light switch is supplied with this kit. To enable function of the rear brake light, a hydraulic switch must be used.
