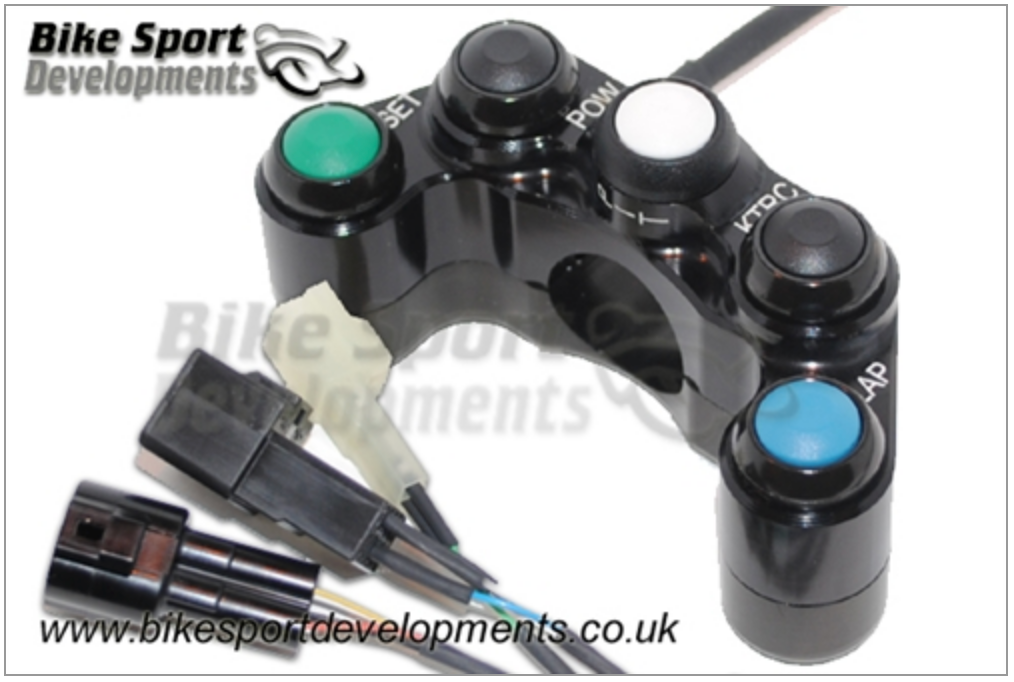

Kawasaki ZX10 2011_2015 race/track bike handlebar switch assembly. 5 button left side - KIT.

Five button handlebar race switches for Kawasaki ZX10 – 2011 to 2015 with KIT ecu and wiring

This switch is a direct replacement for the standard left hand switch assembly found on the ZX10 as well as the Lap timer Start/Stop switch originally on the right side

The set is specifically designed to be used with ‘kit’ electronics where the turn indicator input functions as a pit speed limiter, but can be used on stock electronics knowing that this function will not work.

No modification of the bike wiring is necessary, this assembly plugs directly into the three mating loom connectors.

Connector 1 3 way triangular Power and Traction control modes
Connector 2 10 way block Pit limiter and Lap trigger
Connector 3 2 way block Lap timer Start/Stop

Rugged machined aluminium construction with fully waterproof switches provide greater crash protection as well as electrical integrity.

• Cable length 550mm
• Coating - Black anodise
• Made in the UK
• Kit comprises:
• Sealed switch assembly with integrated wiring loom
• Pre-wired connectors to suit the standard bike / kit wiring
• retaining screws

Not suitable for road bikes which need the turn indicator and lights on/off functions
