Suzuki GSX-R1000 2017> Diamond Race Products Rearsets

Regular price £295.83 GBP + VAT

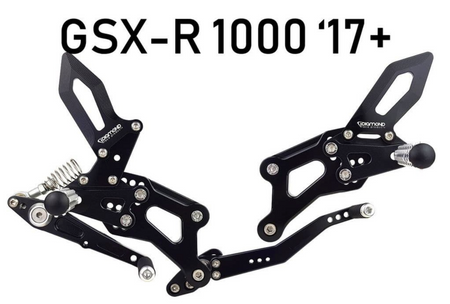

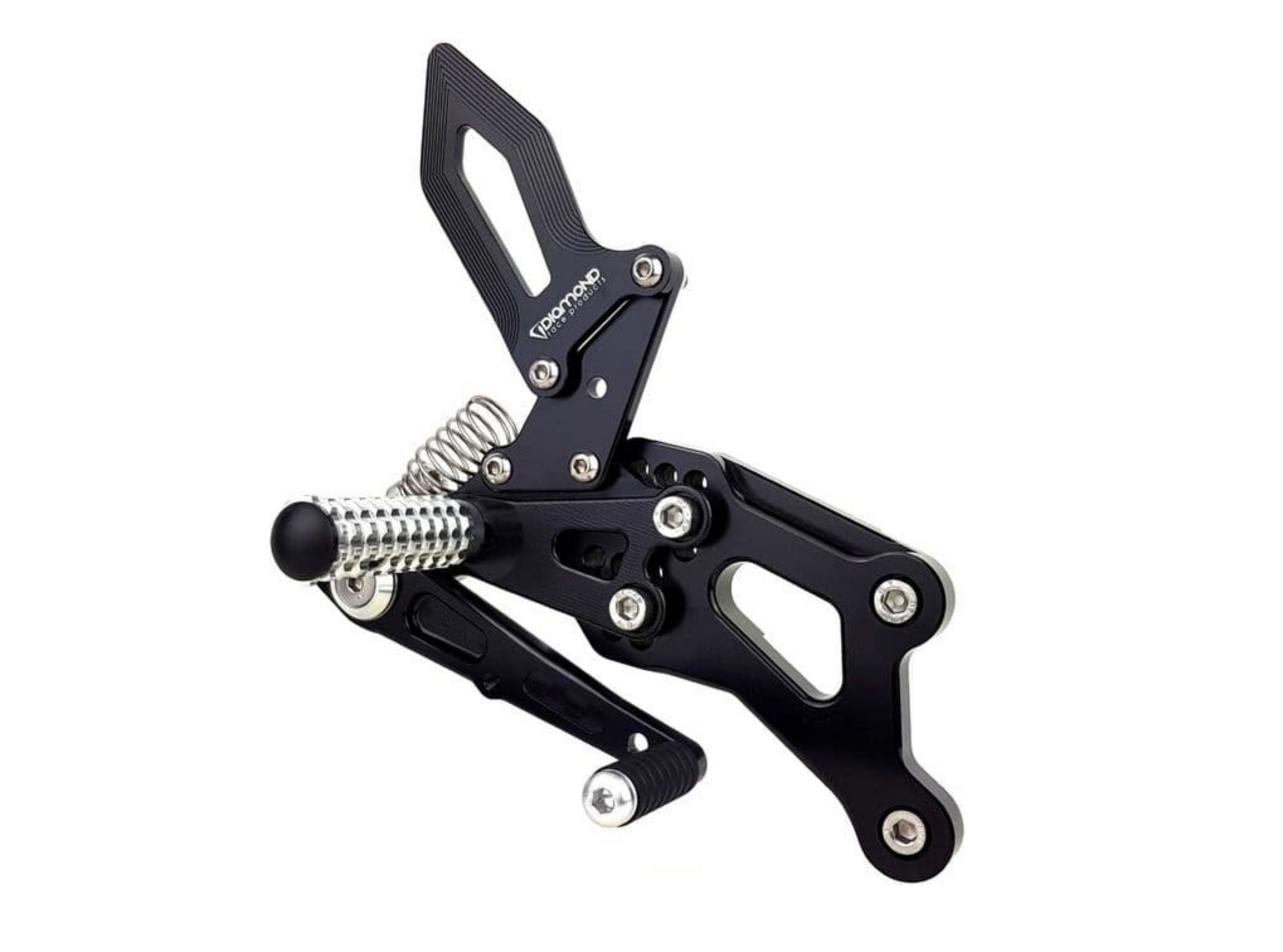

Diamond adjustable racing rearsets.

Top specification rearset kits by Diamond Race Products, as trusted by top teams Worldwide for over a decade!

CNC machined from aerospace grade 7075 T6 billett aluminium, gear change & brake levers are fitted with EC52100 chrome steel grease packed bearings (Most levers include twin bearings for durability) for ultra smooth and reliable movement. Positions are multi-adjustable to suit rider preference - please see the chart below for available position range.

Diamond always carry a full stock of spares for our products (i.e. gear levers, brake levers, footpegs, toepegs, rod end bearings, shift rods, pivot bearings, etc.)


Specifications

- CNC machined from aerospace grade 7075-T6 billet aluminium.

- Huge range of adjustment to suit rider's preference – See chart below.

- Aluminium components hard anodised for high wear resistance.

- EC52100 Double* chrome-steel bearings in gear/brake levers for perfect precision.(single bearings in some lever applications)

- Aggressively machined footpegs for maximum grip in all conditions.

- This kit is designed to allow selection of both Road & Race shift patterns by rotating your shift arm 180 degrees.

- Heel guards laser etched with the 'Diamond Race Products' logo.

- Each kit includes a bottle of 243 threadlock for use in assembly.

- Product weight: 1.2kg

Pos. Forward/Backward Up/Down
1 Back – 30mm Up – 40mm
2 Back – 30mm Up – 50mm
3 Back – 30mm Up – 60mm
4 Back – 40mm Up – 40mm
5 Back – 40mm Up – 50mm
6 Back – 40mm Up – 60mm
7 Back - 50mm Up – 50mm
8 Back – 50mm Up – 60mm

All above measurements taken from OEM GSX-R1000 footrest position.

Please note – No bracketry for usage of the OEM brake light switch is supplied with this kit. To enable function of the rear brake light, a hydraulic switch must be used.
