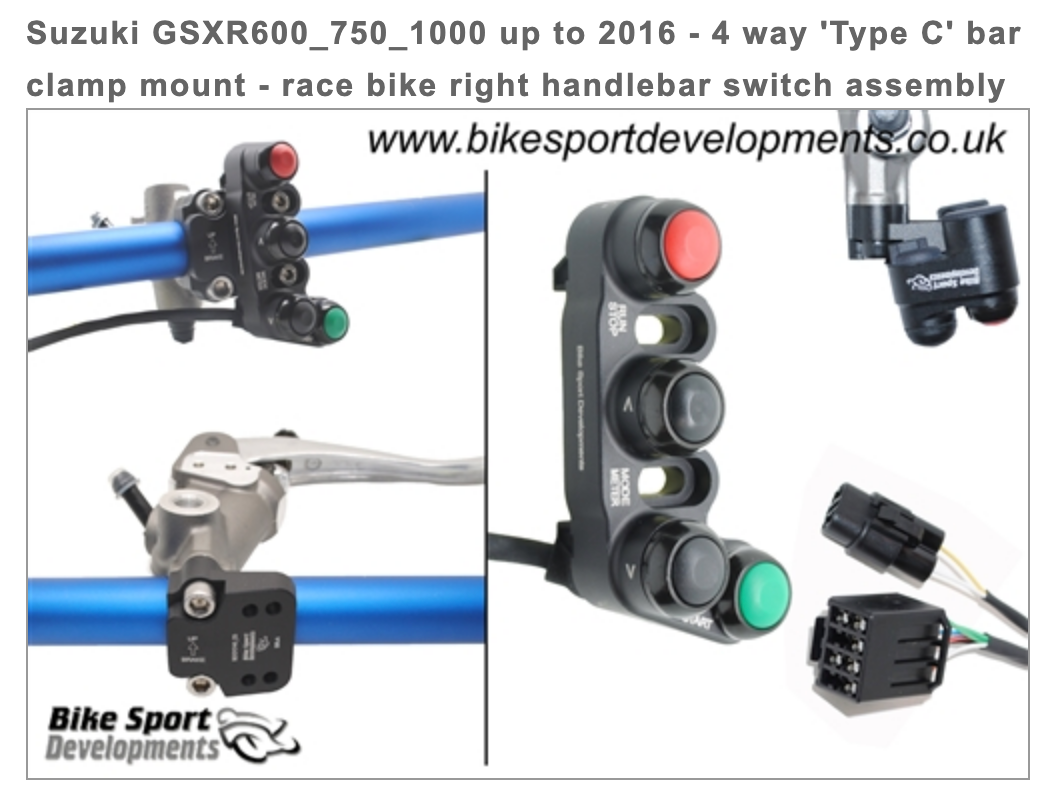

Suzuki GSXR600_750_1000 up to 2016 - 4 way 'Type C' bar clamp mount
Race bike right handlebar switch assembly
Stop/Run Mode Up, Mode Down , Start

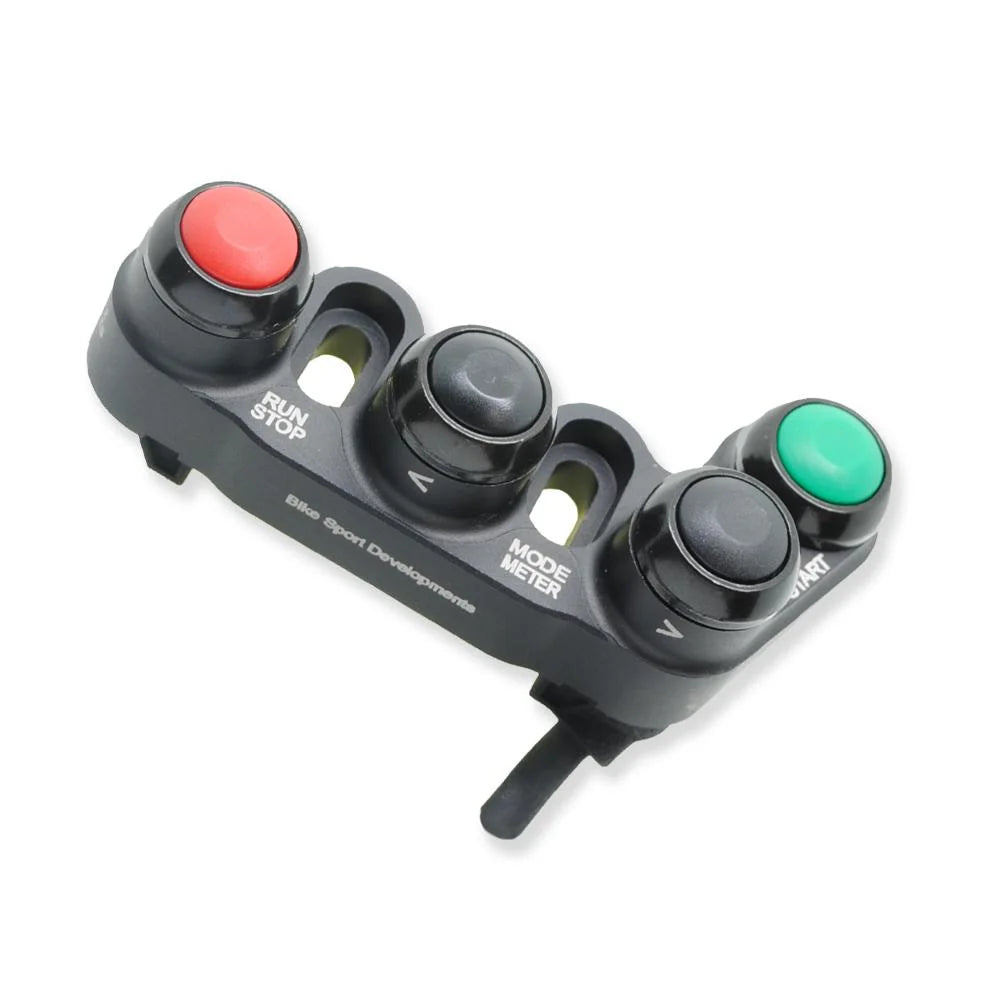

Race bike right handlebar switch assembly
Stop/Run Mode Up, Mode Down , Start

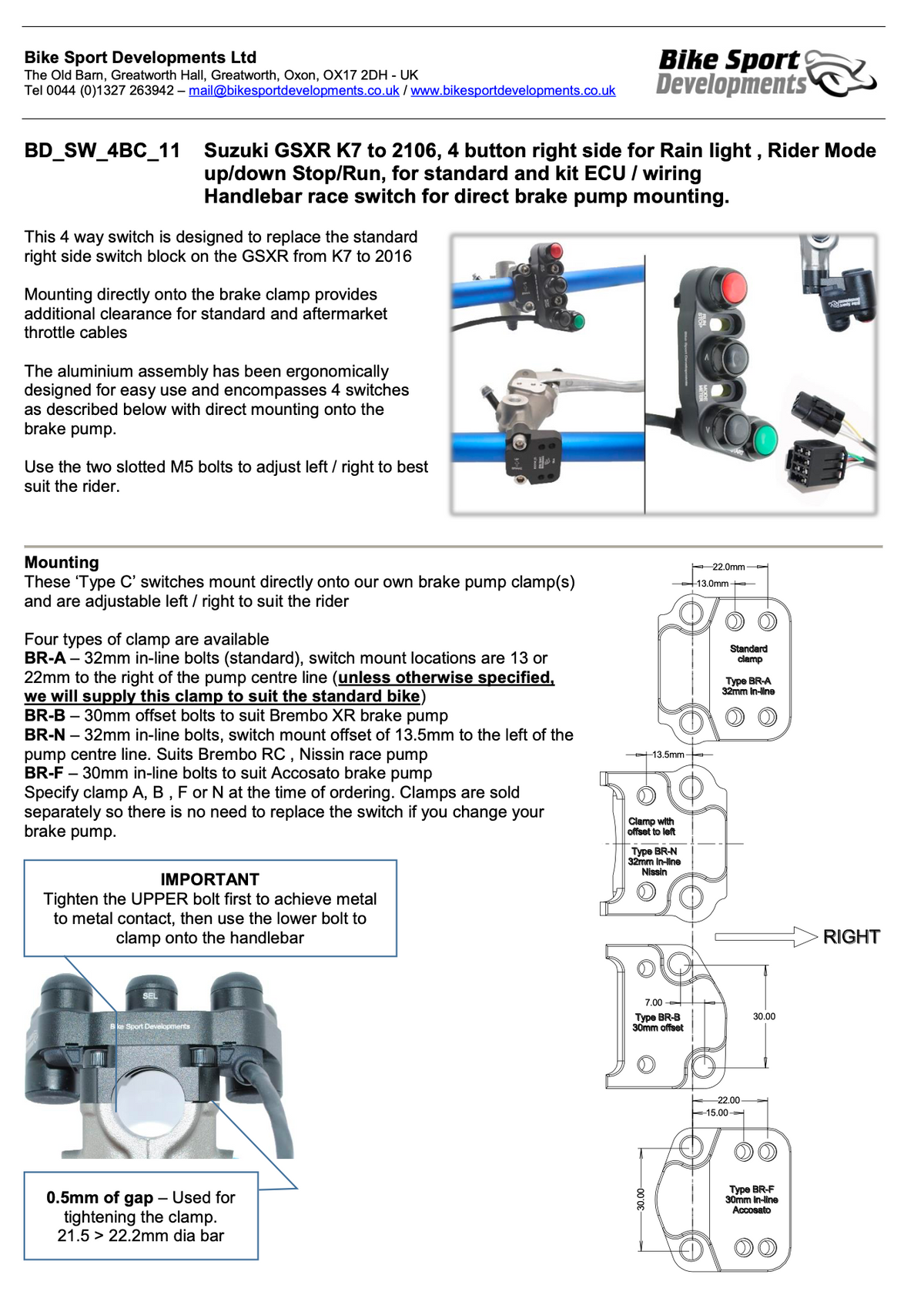

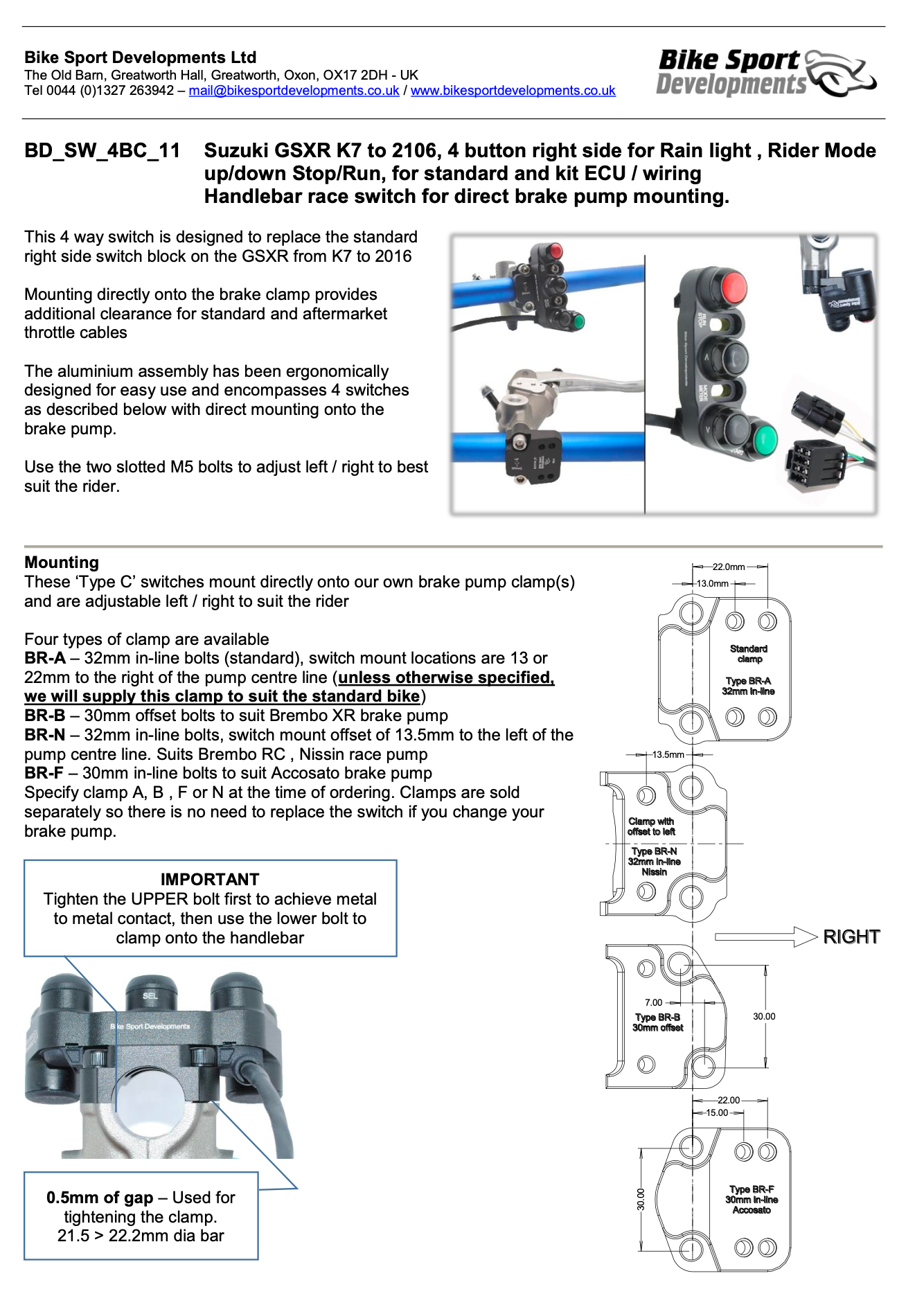

Download the product date sheet here : Datasheet
This switch may be used with the standard or KIT ECU and wiring systems and is a direct 'plug n play' replacement for the standard Stop/Run and Start switch.
Functions:
Functions:
- Stop / Run
- Mode UP
- Mode down
- Start
Type 'C' switches mount directly onto the brake pump body using the two original clamp screws and a new dedicated clamp, this provides greater clearance for standard and aftermarket throttle cable assemblies
The BR-A clamp is supplied free with each switch, with the default clamp matching the bolt pattern of the standard brake pump (master cylinder), but you are free to choose an alternative clamp at the time of ordering at no extra cost.
We have clamps for:
- BR-A 32mm in-line bolt spacing
- BR-B 30mm offset bolt spacing - Brembo XR (GP)
- BR-N 32mm in-line with a left offset for short brake levers (typically Nissin or Brembo RC)
- BR-F 30mm in-line as found on Accosato brake parts
- BR-G Generic clamp for any 21.8 > 22.2 mm handlebar (does not mount on the brake pump)
Unless otherwise specified we will supply the BR-A clamp for this application.
Clamps may be bought separately should you change this part at a future time, there is no need to replace the switch assembly
Perfect for saving space on the handlebar yet retaining left / right adjustment via slotted bolt holes.
Construction / Notes:
- Billet aluminium body
- IP 67 waterproof switches with gold plated contacts
- Raychem type 55 wire and DR25 sleeving
- Plug and play wiring
- Greater crash protection and electrical integrity
- May be repaired after crash damage
- Designed and made in the UK by Bike Sport Developments
- Custom designs are our speciality, so feel free to ask and typically at no extra cost.
