Triumph Daytona 675/R 2006-17 BSD Plug & Play Right Hand Side Handlebar Switch Gear

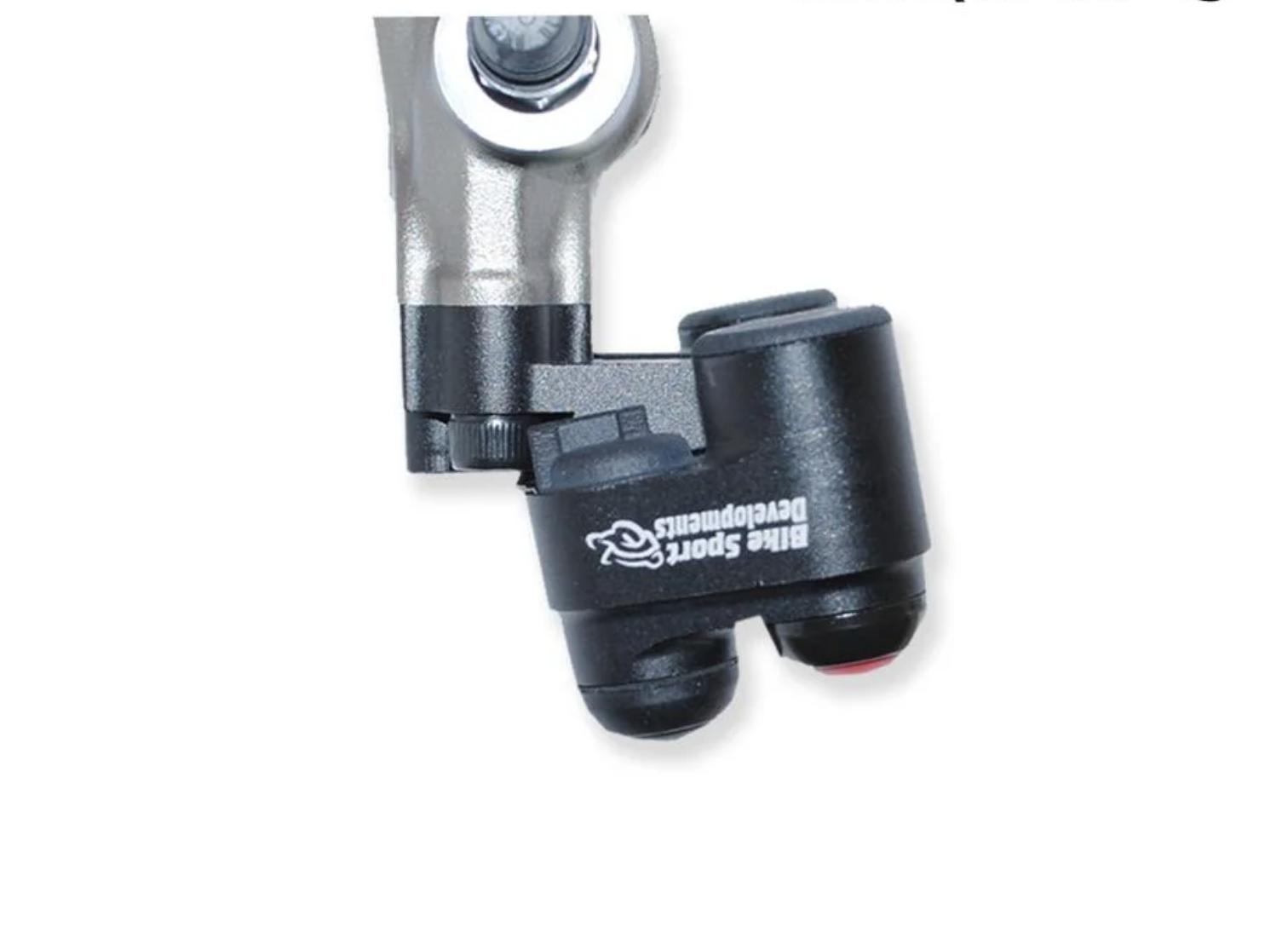

Specially made for us by BSD this 3 button switch assembly is for direct mounting to the brake pump or handlebar.
This switch is a direct replacement for the standard right switch assembly found Daytona. Designed for use on race bikes which need an additional latching switch for the rain light, or need to save space on the handlebar.
The rain light is pre-wired into the original brake switch wiring so control of the ‘stop light’ can be achieved simply by pressing the yellow button.
-
Red,Stop/Run
-
Yellow , Rain light
-
Green , Starter

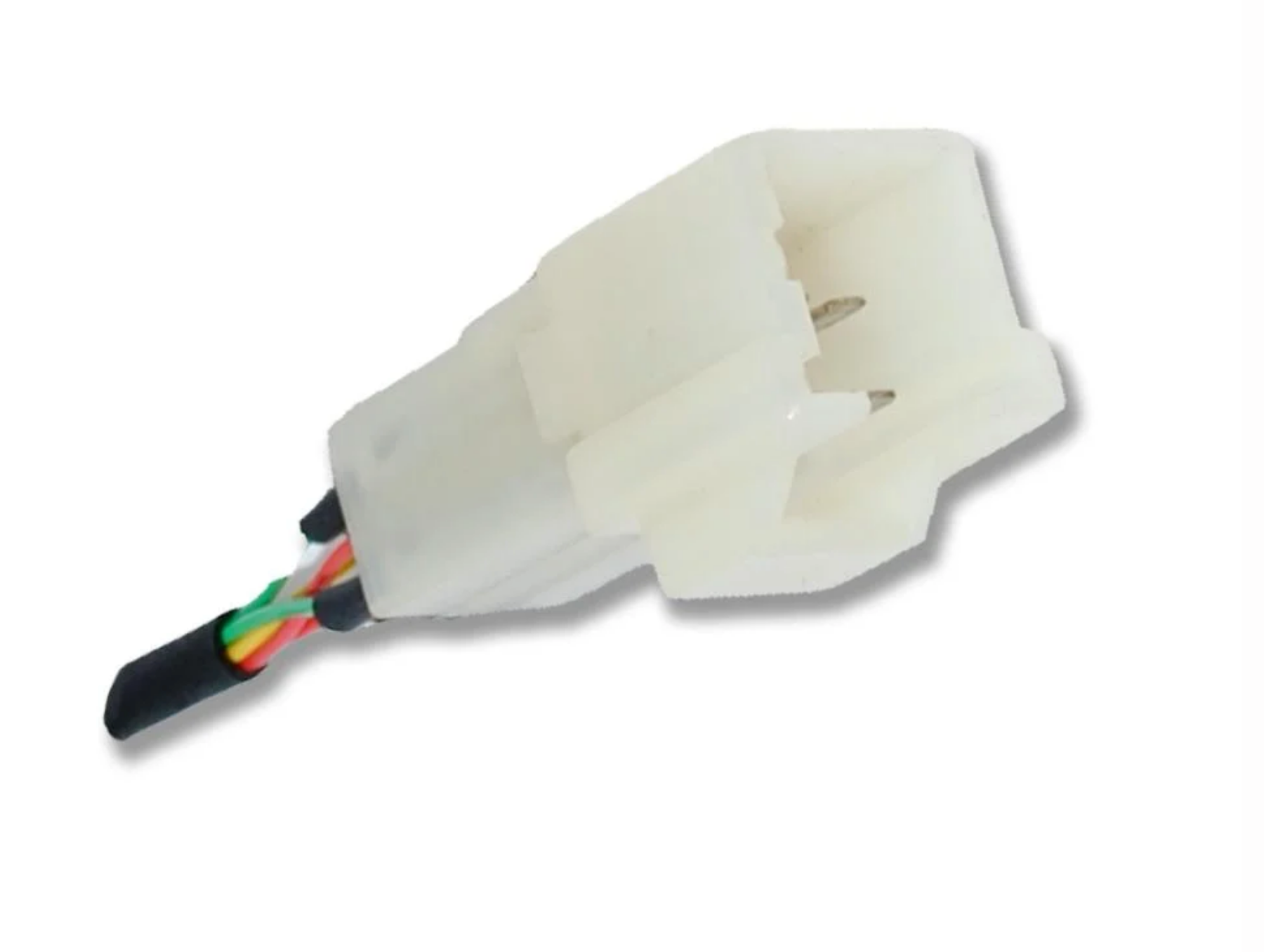

No modification of the bike wiring is necessary, this kit plugs directly into the connector of the stock loom.
Electrical / Mechanical Characteristics
Wire............................................ Type 55 / 24
Switch sealing ......................................... IP67
Housing ..........................................Aluminium
Coating..................................... Black anodise
Dia (handlebar) ...........................22mm (7/8”)
Max width ............................................... 20.5 mm
Min width at centre .................................. 20.0 mm
Weight ........................................................ 85 g
Part No. Connector Description

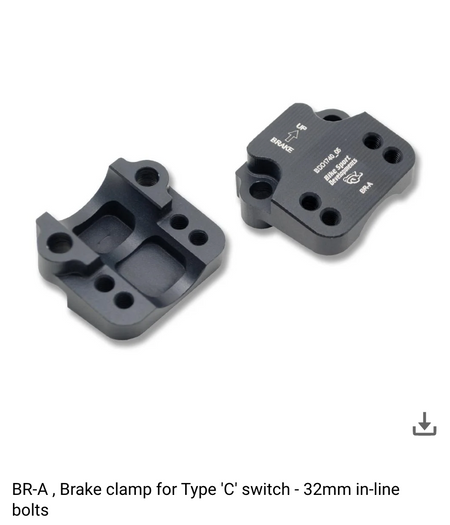

BD-SW-3BXC-13-A Plug n Play 3 way switch Triumph + 32mm in-line A clamp (standard)
BD-SW-3BXC-13-A Plug n Play 3 way switch Triumph + 32mm in-line A clamp (standard)
BD-SW-3BXC-13-B Plug n Play 3 way switch Triumph + 30mm offset – Brembo XR XA GP , B clamp
BD-SW-3BXC-13-N Plug n Play 3 way switch Triumph + 32mm Nissin - Brembo RC RCS N clamp
BD-SW-3BXC-13-F Plug n Play 3 way switch Triumph + 30mm in-line - Accosato , Hell F clamp
BD-SW-3BXC-13-J Plug n Play 3 way switch Triumph + 32mm Offset – Beringer , J clamp
BD-SW-3BXC-13-G Plug n Play 3 way switch Triumph + Generic bar mount clamp
