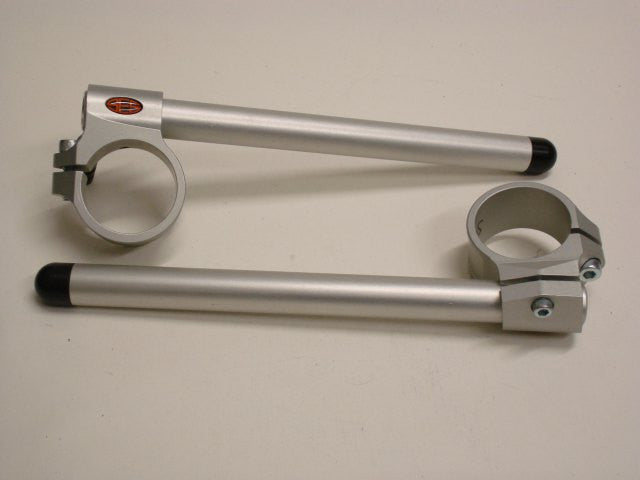

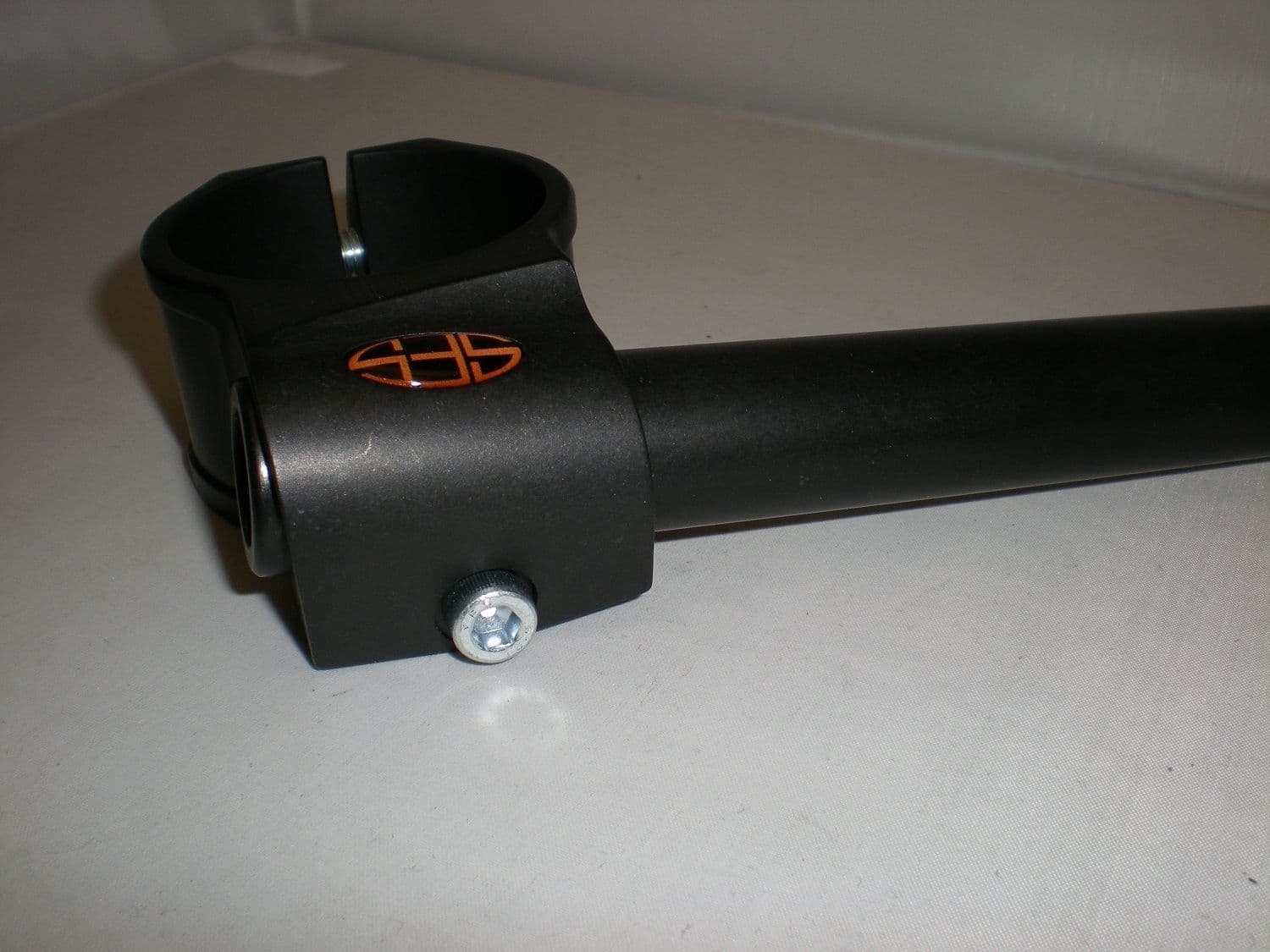

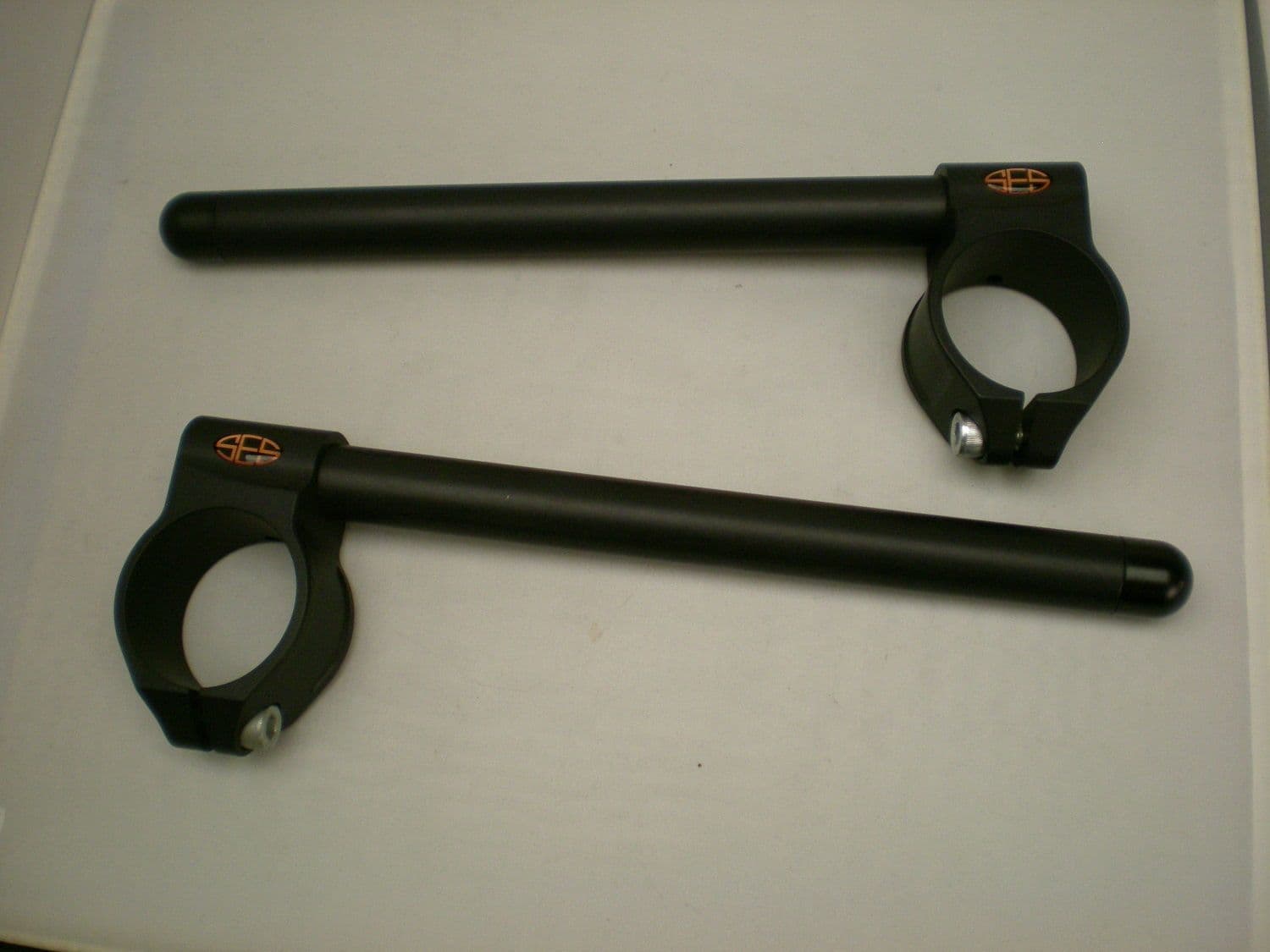

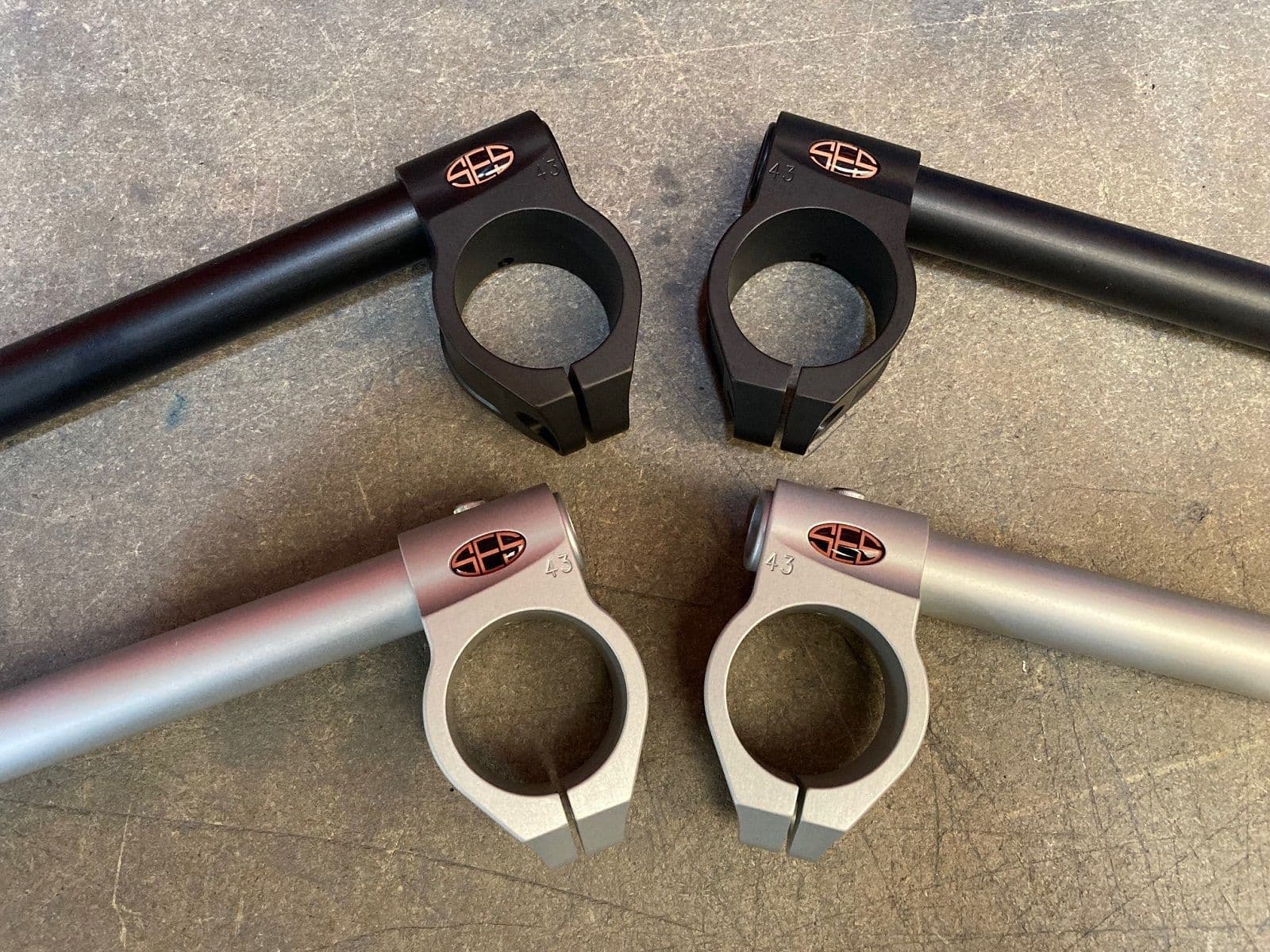

Manufactured in 6082 aluminium and anodised silver as standard, manufactured to a high specification and finish giving a product that is both attractive and durable.
The clamp is fitted using an M8 high tensile cap head bolt and the tube using an M6 bolt. The tube has a solid machined bar end made from durable polyacetal which adds to the crash protection and a retaining groove to register on the fixing screw for safety.
Sizes range from 35mm to 55mm covering most popular bikes. Spare clamps and tubes can be supplied separately as required. (see separate size chart for applications).
Tube length is 270mm as standard.
The drop angle of these clip ons is approx 7 degrees.
